BAUMANN te|box
The Platform for Flexible Testing Applications
The Baumann te|box is the standardised, flexible platform for test engineering applications. When used to test PCBs and control units, it reliably satisfies the demand for quality assurance and a zero defect strategy during production.
The te|box supports standard processes such as ICT, FKT, HFT PCB testing, CFT and flash processes.

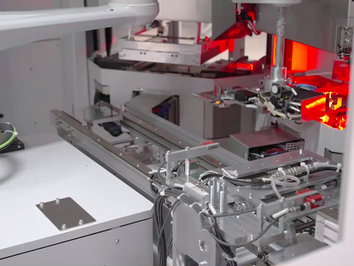

Baumann te|box
Product features:
Cell dimensions
- Model 1.1 525 mm x 525 mm
- Model 2.2 700 mm x 700 mm
- Model 2.4 700 mm x 1050 mm
- Model 4.4 1050 mm x 1050 mm
- Model 6.4 1400 mm x 1050 mm
- Model 8.4 1750 mm x 1050 mm
- Height: 1800 mm ± 50 mm with adjustable feet
Cell Configurations
Low Volume
Mid Volume - 2 Processing Cells
Mid Volume - 4 Processing Cells
Test procedures
- ICT (In-Circuit Test)
- Flash
- FKT (Functional Test)
- CFT (Cold Function Test)
- HFT (Hot Function Test)
- Rotation, Calibration, Pin Check
- Optical Inspection
- EOL (End-of-Line Test)
- and much more
Loading module
- Manual loading via a drawer system, rotary table or conveyor belt
- Linking via a conveyor belt
- Axis system loading
- Robot loading
- Loading modules can be retrofitted

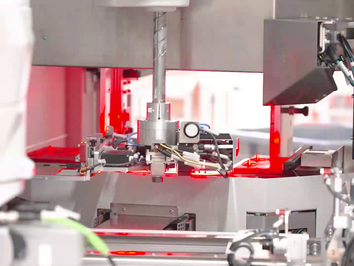

Platform
- Welded steel base framel
- C-contacting with a servo-driven toggle mechanism
- 19" rack with 11 high units for test equipment under the contact mechanism

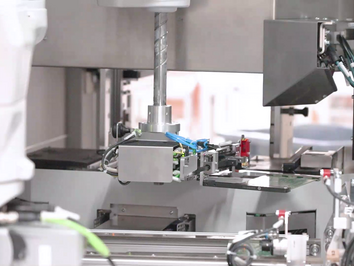

PCB/Control unit
- PCB length 42 - 300 mm
- PCB width: 24 - 240 mm
- Component clearance: -20/+50 mm
- Max. component weight: 3 kg
- Special sizes available upon request
User interface (HMI)
- 5,7" TFT touch screen, multilingual for operating and controlling all the cell functions
- Interfaces - SMEMA, Profibus, CAN, AS-I, TCP/IP
