BAUMANN Multitester

The BAUMANN Multitester is a modular platform for automated testing processes requiring a large number of contacting and testing mechanisms. Various test methods can be combined in a single, compact system – from electrical functional testing and high-frequency (HF) and radio-frequency (RF) testing to vision inspection.

Thanks to its modular design, the test system can be flexibly adapted to different testing tasks, production volumes and manufacturing requirements, and expanded in stages as needed.

Modular platform concept for automated testing processes

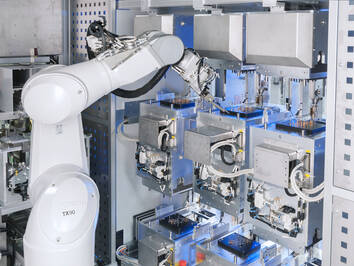

The Multitester is based on a robust steel frame structure with integrated robot handling. Side-mounted test modules allow flexible system configuration.

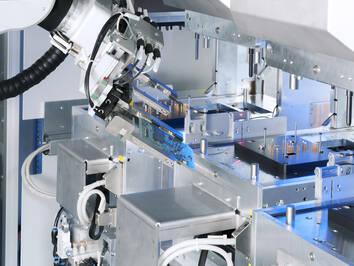

Each test module can accommodate up to six C-contacting units arranged in two vertically stacked rows. For PCB testing, a total of up to twelve C-contacting units can be integrated into a single Multitester.

Flexible adaptation to different production requirements

Thanks to its modular design, the Multitester can be adapted to specific testing tasks and production environments. Additional functions can be integrated as required.

1 – Test Processes

• Up to six parallel test processes with different cycle times, e.g. ICT, flashing, functional testing (FCT), HF and RF testing
• Mechanical functional testing
• Vision inspection
• Additional customer-specific test procedures
• Scalable for high-volume production
• Modular expansion to meet increasing requirements

2 – Test Computers

• PCB testing using C-contacting units can also be combined with customer-specific test stations or test cells. The required test equipment can be integrated into the dedicated 19-inch racks.
